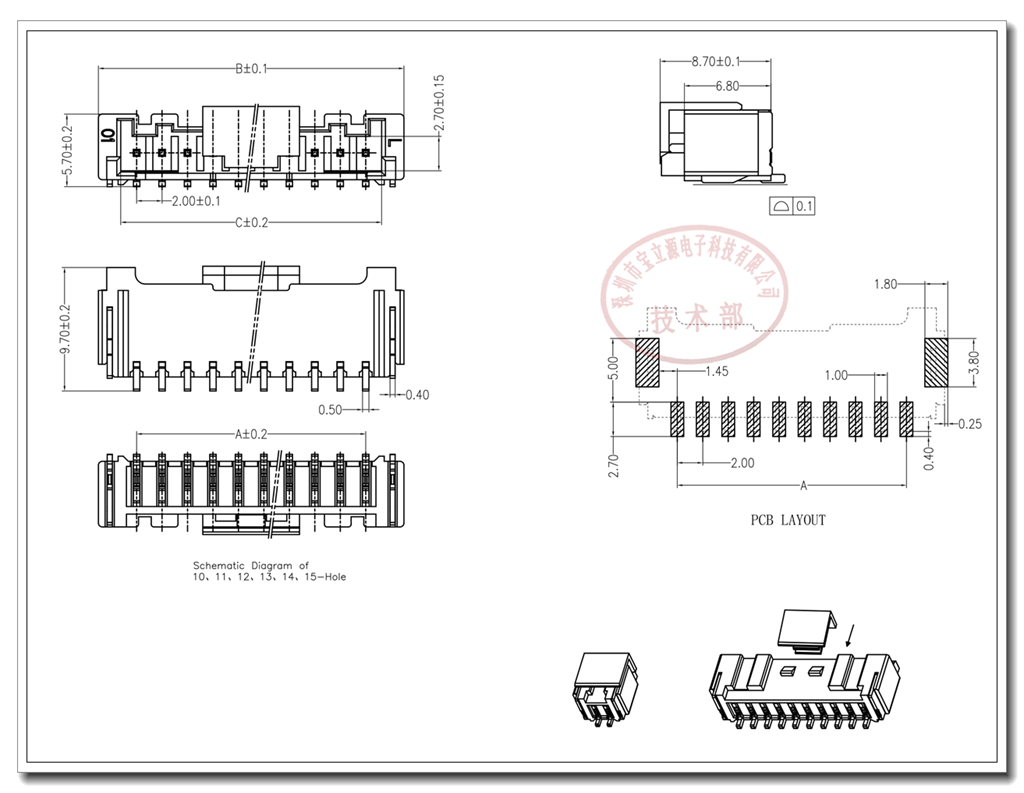

PHE 2.0 带扣 卧贴 PA2.0 有锁 卧式 替代BM02B-PASS-TFT(LF)(S N) A2008连接器
TECHNICAL SPECIFICATIONS：
RATED VOLTAGE：250V AC，DC
RATED CURRENT：3A
WITHSTAND VOLTAGE：800V AC/1MINUTES
INSULATION RESISTANCE：1000MΩ MIN
CONTACT RESISTANCE：20mΩ MAX
TEMPERATURE RANGE：-25~85℃
SMT FURNACE TEMPERATURE：260℃
MATERIALS：
CONTACT MATERIAL:BRASS(SN PLATING)
SOLDERING TERMINAL: BRASS(SN PLATING)
LNSULATION MATERIAL: PA6T UL94V-0
RATED VOLTAGE：250V AC，DC
RATED CURRENT：3A
WITHSTAND VOLTAGE：800V AC/1MINUTES
INSULATION RESISTANCE：1000MΩ MIN
CONTACT RESISTANCE：20mΩ MAX
TEMPERATURE RANGE：-25~85℃
SMT FURNACE TEMPERATURE：260℃
MATERIALS：
CONTACT MATERIAL:BRASS(SN PLATING)
SOLDERING TERMINAL: BRASS(SN PLATING)
LNSULATION MATERIAL: PA6T UL94V-0
